Swoole Redis 连接池的实现

清华大佬耗费三个月吐血整理的几百G的资源，免费分享！....>>>

本文分享下 Redis 连接池

实现一个 Redis 连接池，有不懂得可以咨询六星教育在线讲师。

Demo 中大概包含这些点：

实现 MySQL 连接池

实现 MySQL CURD 方法的定义

实现 Redis 连接池

实现 Redis 方法的定义

满足 HTTP、TCP、WebSocket 调用

提供 Demo 供测试

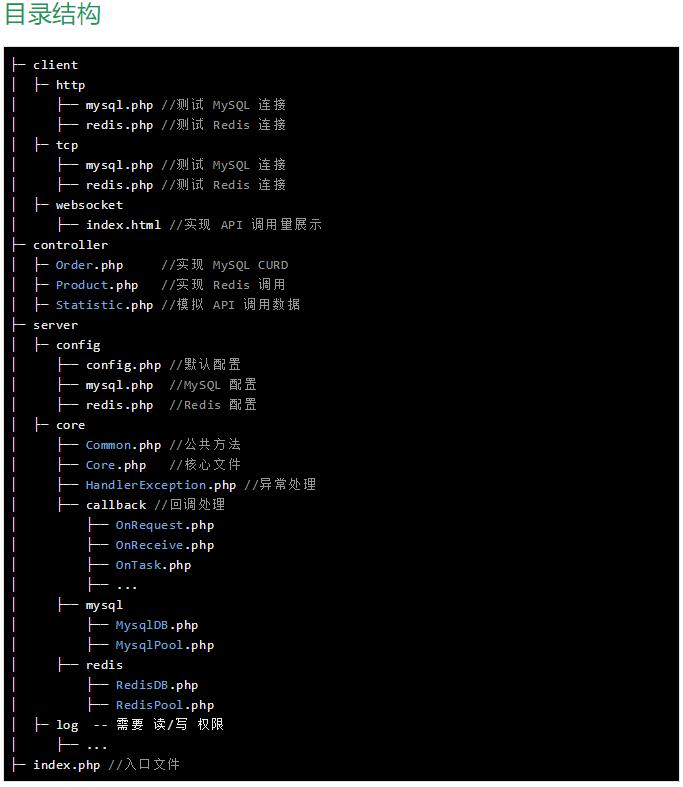

调整 目录结构

HTTP 调用：

TCP 调用：

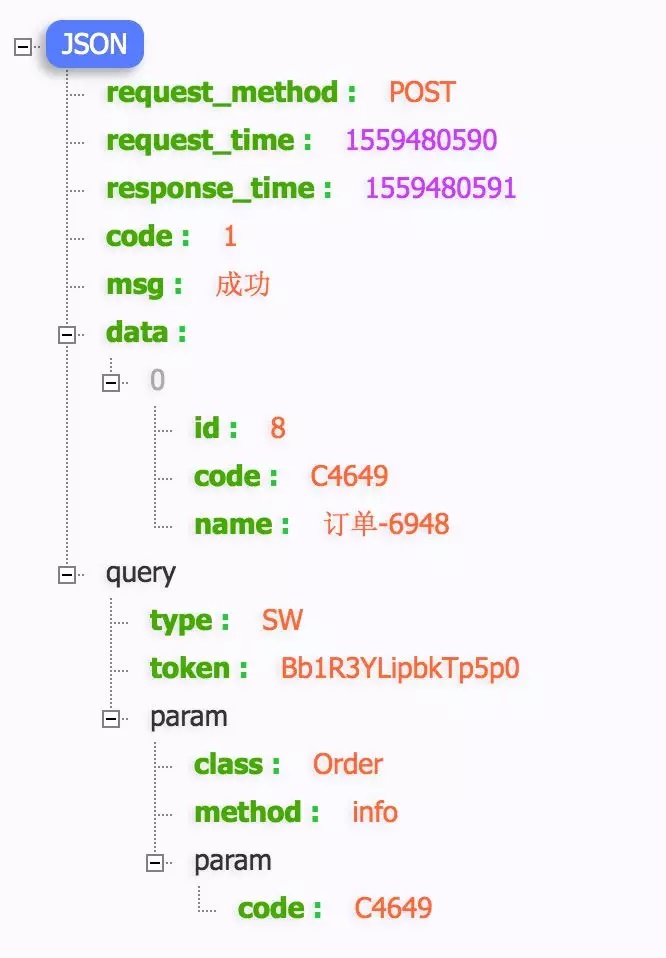

实现 读取 MySQL 中数据的 Demo

实现 读取 Redis 中数据的 Demo

WebSocket 调用：

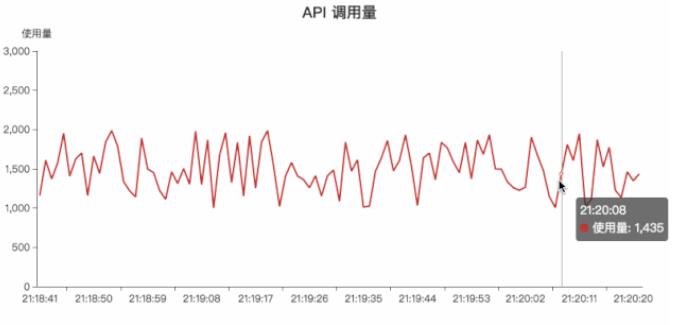

实现 每秒展示 API 调用量 Demo


代码
server/core/redis/RedisPool.php

<?php

if (!defined('SERVER_PATH')) exit("No Access");

class RedisPool
{
private static $instance;
private $pool;
private $config;

public static function getInstance($config = null)
{
if (empty(self::$instance)) {
if (empty($config)) {
throw new RuntimeException("Redis config empty");
}
self::$instance = new static($config);
}
return self::$instance;
}

public function __construct($config)
{
if (empty($this->pool)) {
$this->config = $config;
$this->pool = new chan($config['master']['pool_size']);
for ($i = 0; $i < $config['master']['pool_size']; $i++) {
go(function() use ($config) {
$redis = new RedisDB();
$res = $redis->connect($config);
if ($res === false) {
throw new RuntimeException("Failed to connect redis server");
} else {
$this->pool->push($redis);
}
});
}
}
}

public function get()
{
if ($this->pool->length() > 0) {
$redis = $this->pool->pop($this->config['master']['pool_get_timeout']);
if (false === $redis) {
throw new RuntimeException("Pop redis timeout");
}
defer(function () use ($redis) { //释放
$this->pool->push($redis);
});
return $redis;
} else {
throw new RuntimeException("Pool length <= 0");
}
}
}
server/core/redis/RedisDB.php



<?php
if (!defined('SERVER_PATH')) exit("No Access");
class RedisDB
{
private $master;
private $slave;
private $config;
public function __call($name, $arguments)
{
// TODO 主库的操作
$command_master = ['set', 'hset', 'sadd'];
if (!in_array($name, $command_master)) {
$db = $this->_get_usable_db('slave');
} else {
$db = $this->_get_usable_db('master');
}
$result = call_user_func_array([$db, $name], $arguments);
return $result;
}
public function connect($config)
{
//主库
$master = new Swoole\Coroutine\Redis();
$res = $master->connect($config['master']['host'], $config['master']['port']);
if ($res === false) {
throw new RuntimeException($master->errCode, $master->errMsg);
} else {
$this->master = $master;
}
//从库
$slave = new Swoole\Coroutine\Redis();
$res = $slave->connect($config['slave']['host'], $config['slave']['port']);
if ($res === false) {
throw new RuntimeException($slave->errCode, $slave->errMsg);
} else {
$this->slave = $slave;
}
$this->config = $config;
return $res;
}
private function _get_usable_db($type)
{
if ($type == 'master') {
if (!$this->master->connected) {
$master = new Swoole\Coroutine\Redis();
$res = $master->connect($this->config['master']['host'], $this->config['master']['port']);
if ($res === false) {
throw new RuntimeException($master->errCode, $master->errMsg);
} else {
$this->master = $master;
}
}
return $this->master;
} elseif ($type == 'slave') {
if (!$this->slave->connected) {
$slave = new Swoole\Coroutine\Redis();
$res = $slave->connect($this->config['slave']['host'], $this->config['slave']['port']);
if ($res === false) {
throw new RuntimeException($slave->errCode, $slave->errMsg);
} else {
$this->slave = $slave;
}
}
return $this->slave;
}
}
}
client/http/redis.php




<?php
$demo = [
'type' => 'SW',
'token' => 'Bb1R3YLipbkTp5p0',
'param' => [
'class' => 'Product',
'method' => 'set',
'param' => [
'key' => 'C4649',
'value' => '订单-C4649'
],
],
];
$ch = curl_init();
$options = [
CURLOPT_URL => 'http://10.211.55.4:9509/',
CURLOPT_POST => 1,
CURLOPT_POSTFIELDS => json_encode($demo),
];
curl_setopt_array($ch, $options);
curl_exec($ch);
curl_close($ch);
client/tpc/redis.php



<?php

class Client
{
private $client;

public function __construct() {
$this->client = new swoole_client(SWOOLE_SOCK_TCP, SWOOLE_SOCK_ASYNC);

$this->client->on('Connect', [$this, 'onConnect']);
$this->client->on('Receive', [$this, 'onReceive']);
$this->client->on('Close', [$this, 'onClose']);
$this->client->on('Error', [$this, 'onError']);
}

public function connect() {
if(!$fp = $this->client->connect("0.0.0.0", 9510, 1)) {
echo "Error: {$fp->errMsg}[{$fp->errCode}]".PHP_EOL;
return;
}
}

public function onConnect() {

fwrite(STDOUT, "测试RPC (Y or N):");
swoole_event_add(STDIN, function() {
$msg = trim(fgets(STDIN));
if ($msg == 'y') {
$this->send();
}
fwrite(STDOUT, "测试RPC (Y or N):");
});
}

public function onReceive($cli, $data) {
echo '[Received]:'.$data;
}

public function send() {
$demo = [
'type' => 'SW',
'token' => 'Bb1R3YLipbkTp5p0',
'param' => [
'class' => 'Product',
'method' => 'get',
'param' => [
'code' => 'C4649'
],
],
];
$this->client->send(json_encode($demo));
}

public function onClose() {
echo "Client close connection".PHP_EOL;
}

public function onError() {

}
}

$client = new Client();
$client->connect();




	client/websocket/index.html









<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1">
<meta name="description" content="">
<meta name="keywords" content="">
<title>Demo</title>
<script src="https://cdn.bootcss.com/jquery/3.4.1/jquery.js"></script>
<script src="http://echarts.baidu.com/gallery/vendors/echarts/echarts.min.js"></script>
</head>
<body>
<!-- 为ECharts准备一个具备大小（宽高）的Dom -->
<div id="main" style="width: 900px;height:400px;"></div>
<script type="text/javascript">
if ("WebSocket" in window) {
// 基于准备好的dom，初始化echarts实例
var myChart = echarts.init(document.getElementById('main'));
var wsServer = 'ws://10.211.55.4:9509';
var ws = new WebSocket(wsServer);
ws.onopen = function (evt) {
if (ws.readyState == 1) {
console.log('WebSocket 连接成功...');
} else {
console.log('WebSocket 连接失败...');
}
if (ws.readyState == 1) {
ws.send('开始请求...');
} else {
alert('WebSocket 连接失败');
}
};
ws.onmessage = function (evt) {
console.log('Retrieved data from server: ' + evt.data);
var evt_data = jQuery.parseJSON(evt.data);
myChart.setOption({
xAxis: {
data : evt_data.time
},
series: [{
data: evt_data.value
}]
});
};
ws.onerror = function (evt) {
alert('WebSocket 发生错误');
console.log(evt);
};
ws.onclose = function() {
alert('WebSocket 连接关闭');
console.log('WebSocket 连接关闭...');
};
// 指定图表的配置项和数据
$.ajax({
url : 'http://10.211.55.4:9509/', // 请求url
type : "post", // 提交方式
dataType : "json", // 数据类型
data : {
'type' : 'SW',
'token' : 'Bb1R3YLipbkTp5p0',
'param' : {
'class' : 'Statistic',
'method' : 'init'
}
},
beforeSend:function() {
},
success : function(rs) {
if (rs.code != 1) {
alert('获取数据失败');
} else {
var option = {
title: {
text: 'API 调用量',
x:'center'
},
tooltip: {
trigger: 'axis',
axisPointer: {
animation: false
}
},
xAxis: {
type : 'category',
data : rs.data.time
},
yAxis: {
type: 'value',
boundaryGap: [0, '100%'],
name: '使用量',
splitLine: {
show: false
}
},
series: [{
name: '使用量',
type: 'line',
showSymbol: false,
hoverAnimation: false,
data: rs.data.value
}]
};
// 使用刚指定的配置项和数据显示图表。
if (option && typeof option === "object") {
myChart.setOption(option, true);
}
}
},
error : function(){
alert('服务器请求异常');
}
});
} else {
alert("您的浏览器不支持 WebSocket!");
}
</script>
</body>
</html>








还涉及到，OnMessage.php、OnTask.php 、OnWorkerStart.php 等，就不贴代码了。



运行

小框架的启动/关闭/热加载，看看这篇文章： 第六篇：Swoole 整合成一个小框架



里面 Demo 在 client 文件夹下。



http 目录下的文件，放到自己虚拟目录下，用浏览器访问。



tcp 目录下的文件，在 CLI 下运行。



websocket 目录下的文件，直接点击在浏览器访问。



扩展

官方协程 Redis 客户端手册：



https://wiki.swoole.com/wiki/page/589.html



大家可以尝试使用官方提供的其他方法。



小结

Demo 代码仅供参考，里面有很多不严谨的地方，根据自己的需要进行修改 ...
