JFreeChart生成柱形图代码

2015/09/12 44050

清华大佬耗费三个月吐血整理的几百G的资源，免费分享！....>>>

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
import java.awt.Font;

import javax.swing.JFrame;

import org.jfree.chart.ChartFactory;
import org.jfree.chart.ChartPanel;
import org.jfree.chart.JFreeChart;
import org.jfree.chart.axis.CategoryAxis;
import org.jfree.chart.axis.ValueAxis;
import org.jfree.chart.plot.CategoryPlot;
import org.jfree.data.category.CategoryDataset;
import org.jfree.data.category.DefaultCategoryDataset;

public class BarChartDemo {

    /**
     * @param args
     */
    public static void main(String[] args) {

        JFreeChart chart = ChartFactory.createBarChart("统计", "水果", "水果种类",
                getDataSet());

        // 从这里开始
        CategoryPlot plot = chart.getCategoryPlot();// 获取图表区域对象
        CategoryAxis domainAxis = plot.getDomainAxis(); // 水平底部列表
        domainAxis.setLabelFont(new Font("黑体", Font.BOLD, 14)); // 水平底部标题
        domainAxis.setTickLabelFont(new Font("宋体", Font.BOLD, 12)); // 垂直标题
        ValueAxis rangeAxis = plot.getRangeAxis();// 获取柱状
        rangeAxis.setLabelFont(new Font("黑体", Font.BOLD, 15));
        chart.getLegend().setItemFont(new Font("黑体", Font.BOLD, 15));
        chart.getTitle().setFont(new Font("宋体", Font.BOLD, 20));// 设置标题字体

        ChartPanel chartPanel = new ChartPanel(chart, true); // 这里也可以用chartFrame,可以直接生成一个独立的Frame

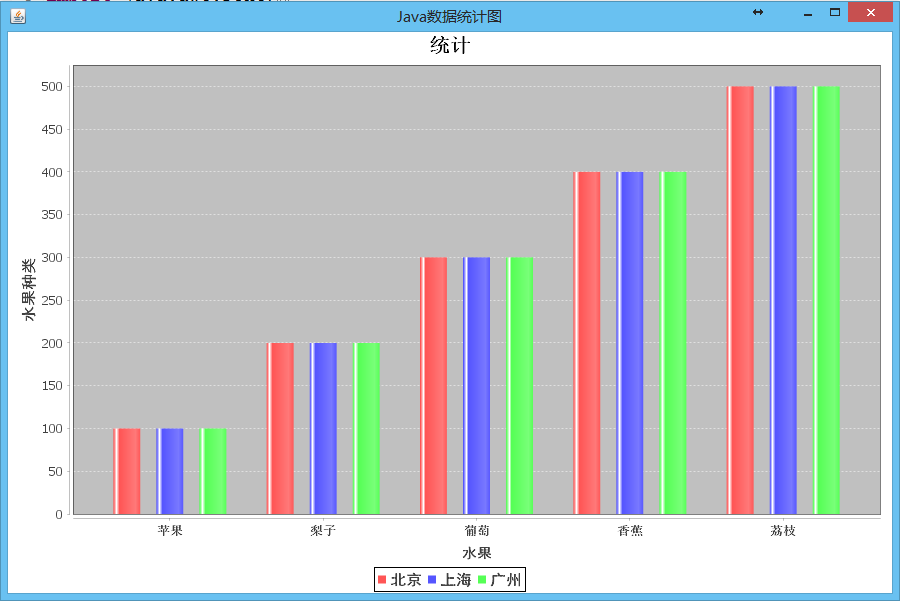

        JFrame frame=new JFrame("Java数据统计图");
        frame.add(chartPanel);           //添加柱形图
        frame.setBounds(50, 50, 900, 600);
        frame.setVisible(true);
    }

    private static CategoryDataset getDataSet() {
        DefaultCategoryDataset dataset = new DefaultCategoryDataset();
        dataset.addValue(100, "北京", "苹果");
        dataset.addValue(100, "上海", "苹果");
        dataset.addValue(100, "广州", "苹果");
        dataset.addValue(200, "北京", "梨子");
        dataset.addValue(200, "上海", "梨子");
        dataset.addValue(200, "广州", "梨子");
        dataset.addValue(300, "北京", "葡萄");
        dataset.addValue(300, "上海", "葡萄");
        dataset.addValue(300, "广州", "葡萄");
        dataset.addValue(400, "北京", "香蕉");
        dataset.addValue(400, "上海", "香蕉");
        dataset.addValue(400, "广州", "香蕉");
        dataset.addValue(500, "北京", "荔枝");
        dataset.addValue(500, "上海", "荔枝");
        dataset.addValue(500, "广州", "荔枝");
        return dataset;
    }

}
